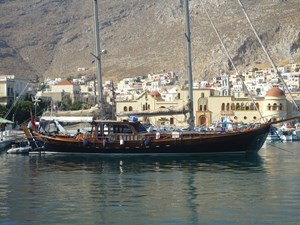

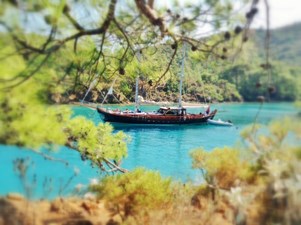

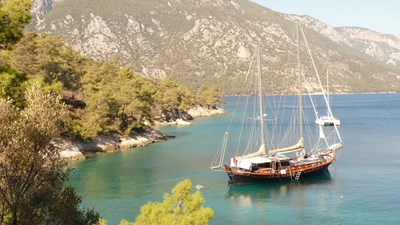

TRIPPIN – FULL SPECIFICATION
Location: Bodrum, Turkey
Type: Boutique Tirhandil / Modern Classic Double Ender
Year Built: 2007
Major Refit: 2022
Machinery Overhaul: 2026
GENERAL INFORMATION
Yacht Name: TRIPPIN
Yacht Type: Boutique Tirhandil / Modern Classic Double Ender
Builder: İlkay Mıstık Boatyard
Built: 2007
Built in: Bodrum, Turkey
Construction Supervision: Built under the supervision of Turkish Lloyd
Certification: Turkish Lloyd certified
Registry: TUGS – Turkish International Ship Registry
Tax Status: Tax Exempt / Prepaid
DIMENSIONS
Length Overall (LOA): 20.00 m / 67.00 ft
Length Waterline (LWL): 18.20 m / 61.00 ft
Beam: 6.50 m / 21.45 ft
Draft: 2.40 m / 7.92 ft
Gross Tonnage: 45 T
Net Tonnage: 24 T
The original technical specification confirms the yacht's principal dimensions and tonnage.
CONSTRUCTION
Hull Construction: Fully laminated construction
Hull Material: Premium mahogany and teak
Hull Protection: 2 layers of epoxy fiber coating
Metal Fittings: 316 and 316L grade stainless steel throughout
The yacht was built using laminated timber construction with mahogany and teak, protected by an additional two-layer epoxy fiber coating.
REFIT HISTORY
2022 – Comprehensive Full Refit
TRIPPIN underwent an extensive full refit in 2022, renewing and upgrading the yacht for continued private and charter use.
2026 – Major Machinery Overhaul
A significant machinery and engine-room overhaul was completed in 2026.
Following the overhaul:
Main Engine Hours: Approx. 500 hours
Kohler Generator Hours: Approx. 1,000 hours
Onan Cummins Generator Hours: Approx. 500 hours
MAIN ENGINE
Engine: 1 x Volvo Penta D7
Power: 265 HP
Type: Heavy-Duty Diesel
Current Hours: Approx. 500 hours since overhaul
Cruising Speed: Approx. 8 knots
Maximum Speed: Approx. 12 knots
Bow Thruster: Max Power Bow Thruster
The original technical specification identifies the Volvo Penta D7 265 HP heavy-duty diesel engine and Max Power bow thruster.
GENERATORS
Generator 1
Make: Kohler
Output: 13 kW
Current Hours: Approx. 1,000 hours since overhaul
Generator 2
Make: Onan Cummins
Output: 4.5 kW
Current Hours: Approx. 500 hours since overhaul
ELECTRICAL SYSTEM
Electrical System: 220V AC / 24V DC
Inverters:
2 x 3,500 W
Solar Power:
2 x 2-750 W solar panel installation
The technical documentation also specifies the 220V AC / 24V DC electrical system and twin 3,500 W inverters.
TANK CAPACITIES
Fuel Capacity: 1,000 L
Fresh Water Capacity: 2,000 L
Sewage Capacity: 2,000 L
Waste Treatment System:
Electro-catalytic treatment system with approximately 4,000 L/day capacity
The original specification confirms the fuel, freshwater and sewage capacities.
WATERMAKER
Make: Horizon
System: Reverse Osmosis
Capacity: 200 L/hour

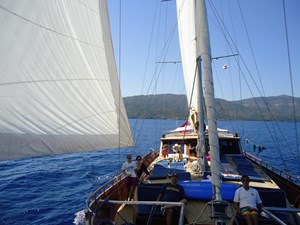

SAILS & RIGGING

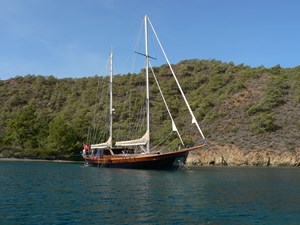

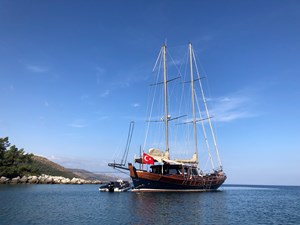

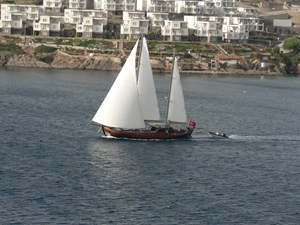

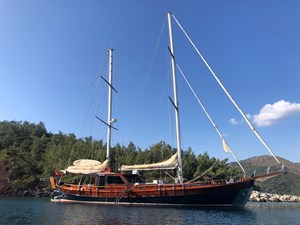

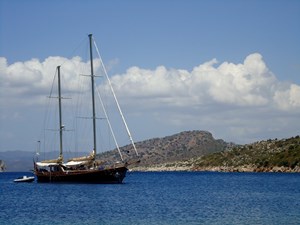

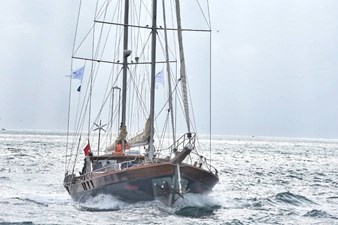

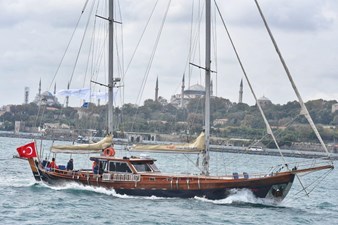

Rig Type: Twin-Mast Gaff-Rigged Ketch
Masts: Aluminium
Sails
Genoa
Jib
Main Sail
Mizzen Sail
Total Main & Mizzen Sail Area: Approx. 240 m²
Equipment & Brands
UK Sails
TNF Sails
Antal Rigging Equipment
Harken Equipment
Admiral Furling Systems
Winches
Winches for:
Genoa
Main Sail
Mizzen Halyards
The yacht's original technical specification describes her as a twin-mast gaff-rigged ketch with aluminium masts and Antal, Harken and Admiral equipment.
NAVIGATION & COMMUNICATION
GPS / Plotter / Radar: Raymarine C120
Autopilot: Raymarine SmartPilot ST6002
Tridata: Raymarine ST60+
Wind Instruments: Raymarine ST60+ Wind & Close-Hauled Wind
VHF / DSC: Raymarine Ray54E
Depth Sounder: Garmin 340C Color Sonar
AIS: Automatic Identification System

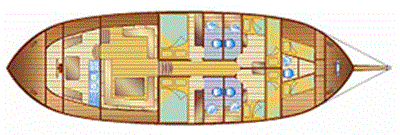

ACCOMMODATION
Maximum Guests: 8
Guest Cabins: 4
Configuration: 4 x Queen-Size Double Cabins
Bathrooms: 4 x En-Suite Bathrooms

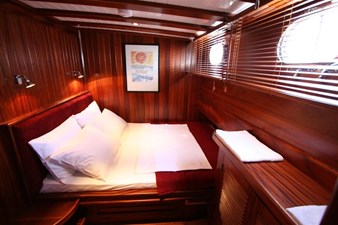

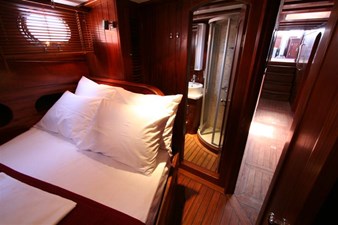

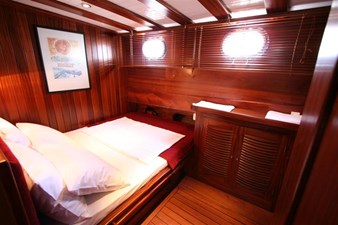

Each guest cabin features:
Queen-size double bed
Private en-suite bathroom
Walk-in shower
Washbasin
Toilet
Individual air-conditioning control
CREW ACCOMMODATION
The crew quarters are located forward and are completely separated and isolated from the guest accommodation areas.
AIR CONDITIONING
System: Custom-built Chiller / Heater Split System
Independent air-conditioning controls are provided throughout the cabins and interior guest areas. The original specification confirms the yacht's custom chiller/heater air-conditioning system with individual controls.
INTERIOR

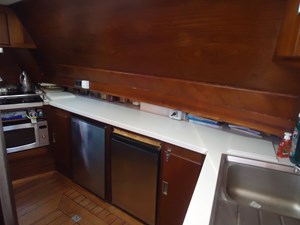

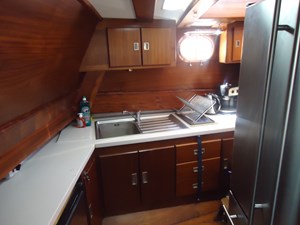

Fully equipped enclosed galley

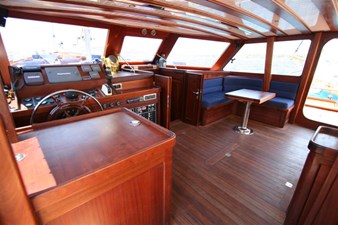

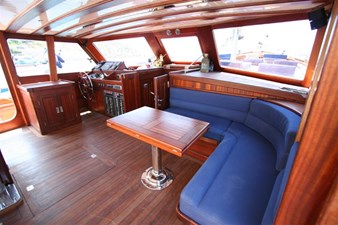

Comfortable indoor saloon
Lounge seating
Four en-suite guest cabins
Separate crew accommodation
Independent climate control throughout
EXTERIOR LIVING AREAS
TRIPPIN offers generous outdoor living areas designed for comfortable private cruising and charter use.
Features include:
Large sun deck
Spacious sunbathing areas
Sun mattresses

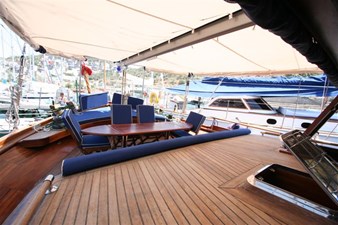

Shaded aft deck
Large dining table for up to 8 guests
Wide exterior deck areas
Traditional modern-classic styling
TENDER
Tender: Joker RIB
Length: 4.20 m
Hull: Fiberglass-bottom RIB
Outboard: Mercury 50 HP
WATER SPORTS & TOYS
1 x Hard Kayak
1 x Inflatable Kayak
1 x Paddle Board
Snorkeling Equipment
Fins
SAFETY EQUIPMENT
The yacht is equipped in accordance with applicable class and Lloyd/MCA (EU) standards.
Life-Saving Equipment
Life Raft:
1 x 12-person inflatable life raft
Life Jackets:
16 x Adult life jackets
5 x Junior life jackets
Life Rings:
6 x Standard life rings
2 x Horseshoe life rings
MOB Equipment
Lifting tackle
Dan buoy
Regulation flares
Fire & Medical Equipment
Fire extinguishers throughout
Smoke alarms in all cabins
Smoke alarms in saloon
Engine-room fire protection
Regulation flares
Fully equipped medical first-aid kit
The technical specification lists the 12-person life raft, adult and junior PFDs, MOB equipment, fire extinguishers, smoke alarms and medical kit.
INSURANCE & COMPLIANCE
Standards: Class & Lloyd MCA (EU) compliant
Insurance: Fully insured by Groupama
SALES HIGHLIGHTS
Asking Price: €555,000
20.00 m Modern Classic Double Ender
Built by İlkay Mıstık Boatyard, Bodrum
Built in 2007
Comprehensive Full Refit in 2022
Major Machinery Overhaul in 2026
Approx. 500 hours on Volvo Penta D7 since overhaul
4 Queen-Size En-Suite Guest Cabins
Accommodation for 8 Guests
Separate Crew Accommodation
265 HP Volvo Penta D7
2 Generators: Kohler 13 kW + Onan Cummins 4.5 kW
Max Power Bow Thruster
200 L/hour Horizon Watermaker
Twin-Mast Gaff-Rigged Ketch
Premium Mahogany & Teak Laminated Construction
Turkish Lloyd Supervised Construction
TUGS Registered
Spacious Exterior Living & Dining Areas
Strong Potential for Private Ownership or Charter Operation
